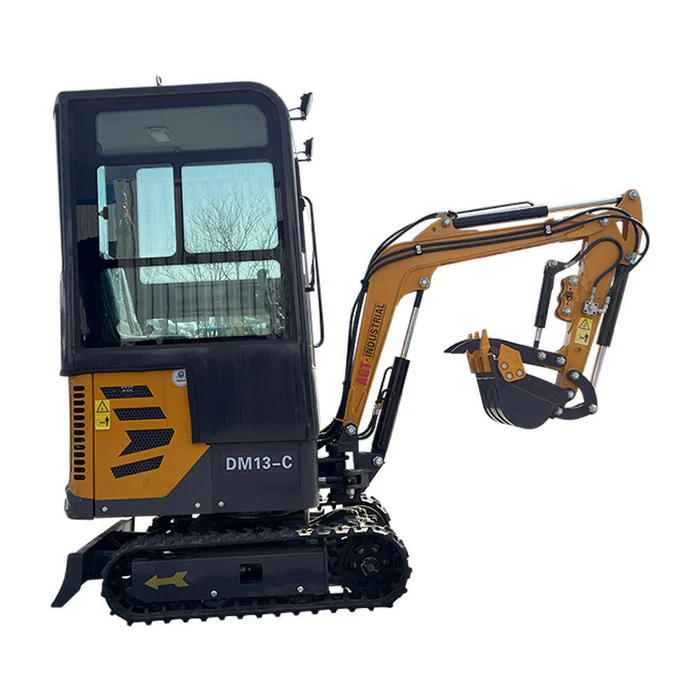

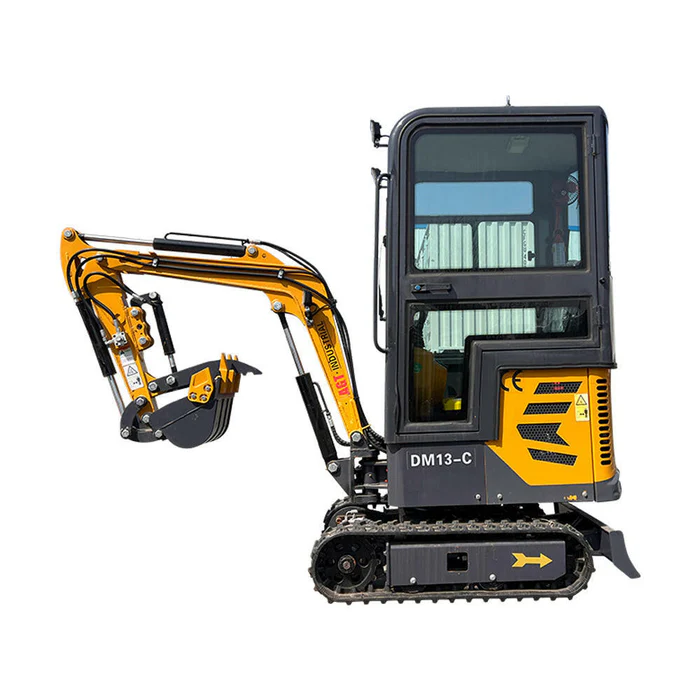

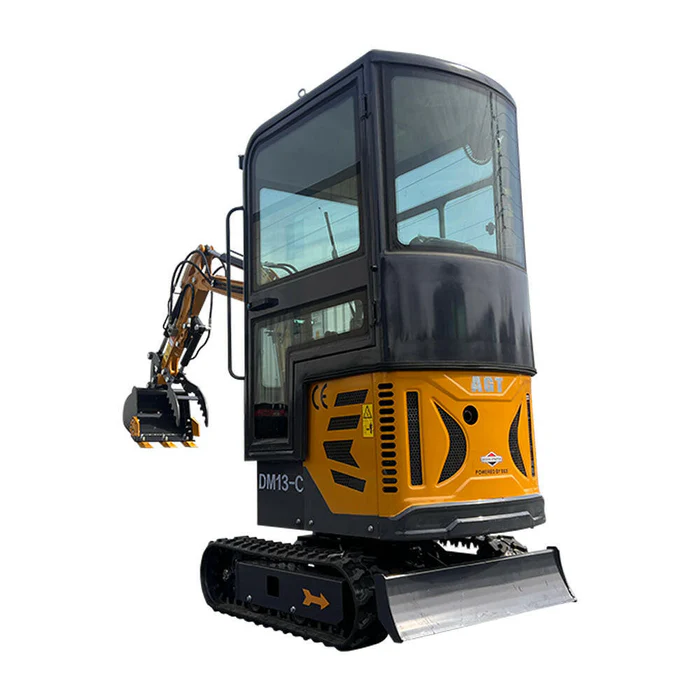

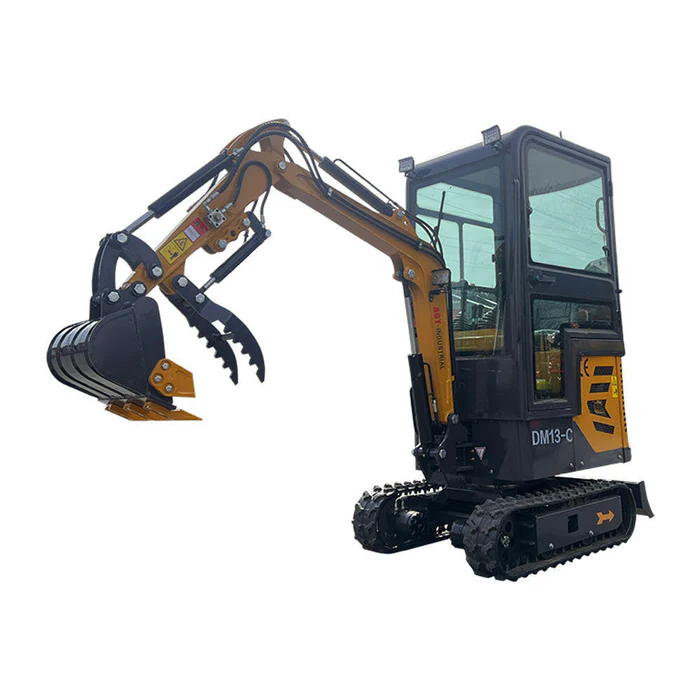

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | AGT-DM13-C

The AGT-DM13C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks.

Technical Data:

Engine:

• Brand: Briggs & Stratton (B&S)
• Model: 13.5 HP
• Power Output: 9.8 kW
• Maximum Speed: 3,600 RPM
• Cylinders: 1
• Cooling Method: Fan cooling
• Engine Oil Capacity: 1.1 liters
• Fuel Type: Gasoline
• Fuel Grade: 92#
• Theoretical Fuel Consumption: 0.5-1.2 liters per hour

Performance:

• Operating Weight: 2,150 lbs (975 kg)
• Maximum Digging Depth: 1,650 mm
• Maximum Digging Height: 2,400 mm
• Maximum Digging Radius: 3,080 mm
• Maximum Climbing Ability: 30°

Hydraulic System:

• Main Pump Type/Model: Gear pump/06
• Main Pump Brand: Tianjin Xingzou
• Rated Set Pressure: 16 MPa
• Maximum Flow Rate of Main Pump: 21.6 liters per minute
• Multi-way Valve: 8 multi-way valves
• Multi-way Valve Brand: Bei Fang

Dimensions:

• Overall Length: 2,738 mm
• Overall Width: 935 mm
• Overall Height: 2,209 mm
• Bulldozer Width/Height: 907 mm / 210 mm

Undercarriage:

• Track Type: 7-inch rubber tracks

Additional Features:

• Cabin: Enclosed cab (no air conditioning)
• Boom: Articulating/swing boom with a 30° angle
• Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
• Auxiliary Hydraulics: Yes


  Specific Data:

  Basic Performance Parameters	Working Weight(kg)	940
  	Bucket capacity(m³)	0.03
  	Travel speed low/high speed(Km/h)	0-0.2
  	Climbing ability(%)	30
  	A Maximum Digging Height(mm)	2795
  	B Maximum Unloading Height(mm)	1863
  	C Maximum Digging Depth(mm)	1684
  	E Max. digging radius(mm)	3112
  	Side Swing	√
  	Side Swing Angle (L/R)	30°
  	undercarriage expansion	×
  Body	J  Overall Length(mm)	2738
  	K  Overall Width(mm)	935
  	L  Overall Height(mm)	2209
  	Bulldozer Width/Height	907/210
  Engine	Engine Brand	B&S
  	Engine Model	13.5HP
  	Max. power(Kw)	9.8
  	Max. speed(rpm)	3600
  	Cylinders	1
  	Cooling method	fan cooling
  	Engine oil change quantity(L)	1.1
  	Fuel Type	Gasoline
  	Fuel Grade	92#
  	Theoretical fuel consumption(L/h)	0.5-1.2
  Hydraulic system	Main pump type/model	gear pumps/06
  	Main pump brand	(Tianjin Xingzou)
  	Rated set pressure(Mpa)	16
  	Maximum flow rate of main pump(L/min)	21.6
  	Multi-way valve	8 multi-way valves
  	Brand of Multi-way valve	(Bei Fang)
  	Rated Set Pressure(Mpa)	16
  	Hydraulic Linear Motor type	BM6-310
  	Linear Motor Brand	(Li Yuan)
  	Hydraulic Servo Motor type	BM2-250
  Excavator tracks	△-Rubber (bandwidth*pitch*number of sections)	180*72*37
  Configuration	Cab	√
  	Roof	×
  	Handrail	×
  	Thumb Clip	√
  	Counterweight	×
  	Tensioning Forms	Mechanical tensioning
  	Air Conditioning	×
  Fuel tank	Fuel tank(L)	6.6
  	Hydraulic oil tan（L）
