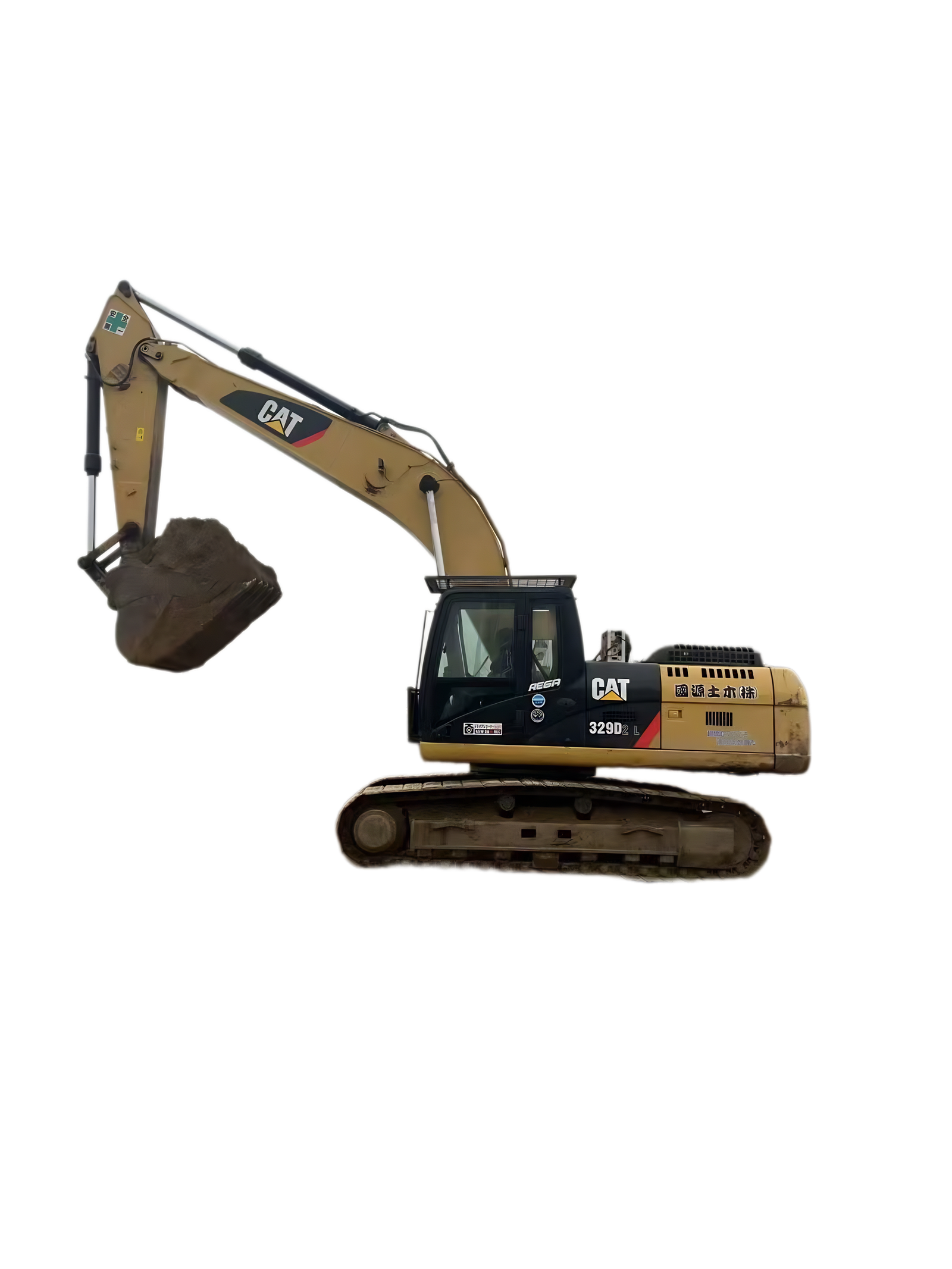

Name: CAT 329D
SKU: 2415
Availability: InStock

The Carter 329D is a 29-ton large excavator and a mature model of Carter. It is equipped with a Carter C7 ACERT engine with 6 cylinders, a bore × stroke of 110 × 127 mm, a displacement of 7.2L, and a rated power of 152kW, which is powerful. The ACERT technology optimizes combustion, making fuel economy better and wear lower. Combined with the “Economy Mode and Power Control” system, users can balance performance and fuel consumption as needed.
#text-1514534020 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0,0,0); } #text-1514534020 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-1514534020 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-1514534020 { font-size: 1.1rem; line-height: 2.1; } }

#text-box-88671513 { width: 100%; } #text-box-88671513 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-88671513 { width: 49%; } } @media (min-width:850px) { #text-box-88671513 { width: 44%; } }

#image_749325575 { width: 93%; } @media (min-width:550px) { #image_749325575 { width: 43%; } } @media (min-width:850px) { #image_749325575 { width: 34%; } }

#image_1571405812 { width: 89%; } @media (min-width:550px) { #image_1571405812 { width: 32%; } }

#banner-1531795857 { padding-top: 760px; } @media (min-width:550px) { #banner-1531795857 { padding-top: 500px; } }

#image_867693472 { width: 89%; } @media (min-width:550px) { #image_867693472 { width: 32%; } } @media (min-width:850px) { #image_867693472 { width: 19%; } }

The Carter 329D is a 29-ton large excavator and a mature model of Carter. It is equipped with a Carter C7 ACERT engine with 6 cylinders, a bore × stroke of 110 × 127 mm, a displacement of 7.2L, and a rated power of 152kW, which is powerful. The ACERT technology optimizes combustion, making fuel economy better and wear lower. Combined with the “Economy Mode and Power Control” system, users can balance performance and fuel consumption as needed.
#text-1719736663 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-1719736663 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-1719736663 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-1719736663 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-2130505254 { width: 100%; } #text-box-2130505254 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-2130505254 { width: 49%; } } @media (min-width:850px) { #text-box-2130505254 { width: 45%; } }

#image_1500307223 { width: 89%; } @media (min-width:550px) { #image_1500307223 { width: 33%; } }

#banner-457624162 { padding-top: 750px; } #banner-457624162 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-457624162 { padding-top: 500px; } }

#image_392105953 { width: 89%; } @media (min-width:550px) { #image_392105953 { width: 40%; } } @media (min-width:850px) { #image_392105953 { width: 30%; } }

The working weight of the Carter 329D is 29240kg, and it is equipped with a 1.1m³ bucket as standard (some mention 1.5m³). The slewing speed is 10.2rpm, the travel speed is ≤5.3km/h, and the climbing ability is 70%. The bucket digging force is 188kN, and the digging force of the bucket arm is 128kN.
#text-4215548470 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0, 0, 0); } #text-4215548470 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-4215548470 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-4215548470 { font-size: 1.1rem; line-height: 2.05; } }

#text-box-1248588468 { width: 100%; } #text-box-1248588468 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1248588468 { width: 51%; } } @media (min-width:850px) { #text-box-1248588468 { width: 44%; } }

#image_1572646205 { width: 89%; } @media (min-width:550px) { #image_1572646205 { width: 30%; } }

#banner-1671385481 { padding-top: 555px; } #banner-1671385481 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-1671385481 { padding-top: 500px; } }

#image_712689882 { width: 89%; } @media (min-width:550px) { #image_712689882 { width: 33%; } } @media (min-width:850px) { #image_712689882 { width: 19%; } }

The transport length is 10410mm, the width is 3190mm, and the height is 3180mm, which is relatively convenient for transfer. The cab is 3040mm high, with a good view; the fuel tank is 520L, and the endurance is guaranteed; the unique upper frame slewing bearing design increases surface contact, prolongs service life, improves stability, and reduces pitch.
#text-2013864125 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-2013864125 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-2013864125 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2013864125 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-873004826 { width: 100%; } #text-box-873004826 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-873004826 { width: 49%; } } @media (min-width:850px) { #text-box-873004826 { width: 45%; } }

#image_520553818 { width: 89%; } @media (min-width:550px) { #image_520553818 { width: 33%; } }

#banner-972730488 { padding-top: 650px; } #banner-972730488 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-972730488 { padding-top: 500px; } }

This model is suitable for a variety of working conditions such as road construction, quarries/mines, municipal engineering and waste treatment.
#text-366863620 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-366863620 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-366863620 { font-size: 1rem; line-height: 2.05; text-align: left; } } @media (min-width:850px) { #text-366863620 { line-height: 2.2; } }

#text-box-1688372965 { width: 100%; } #text-box-1688372965 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1688372965 { width: 49%; } } @media (min-width:850px) { #text-box-1688372965 { width: 44%; } }

#image_1431955967 { width: 89%; } @media (min-width:550px) { #image_1431955967 { width: 34%; } } @media (min-width:850px) { #image_1431955967 { width: 19%; } }

#image_336421902 { width: 89%; } @media (min-width:550px) { #image_336421902 { width: 33%; } }

#banner-1698480494 { padding-top: 500px; } @media (min-width:550px) { #banner-1698480494 { padding-top: 500px; } }

#gap-338180591 { padding-top: 10%; }

Category	Parameters
Product name	CAT329D
Engine model	C7 ACERT™
Rated power	152kW
Displacement	7.2L
Fuel tank capacity	520L
Standard configuration	29,240kg
Extended chassis system	26,900kg
Bucket capacity	1.54m³
Bucket width	1,600mm
Maximum digging depth	6,440mm to 7,290mm
Maximum digging height	9,880mm
Maximum digging radius	10,130mm
Bucket digging force	168kN
Length	10,360mm
Width	2,990mm (track width 600mm)
Height	To the top of the cab: 3,040mm
Driving speed	5.3km/h (high/low speed)
Gradeability	30°
Minimum ground clearance	470mm

#text-box-320150111 { width: 91%; } #text-box-320150111 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-320150111 { width: 50%; } }

#banner-2069095640 { padding-top: 600px; } #banner-2069095640 .overlay { background-color: rgba(19, 19, 19, 0.791); }

used cat 329d crawler excavator video
