Description

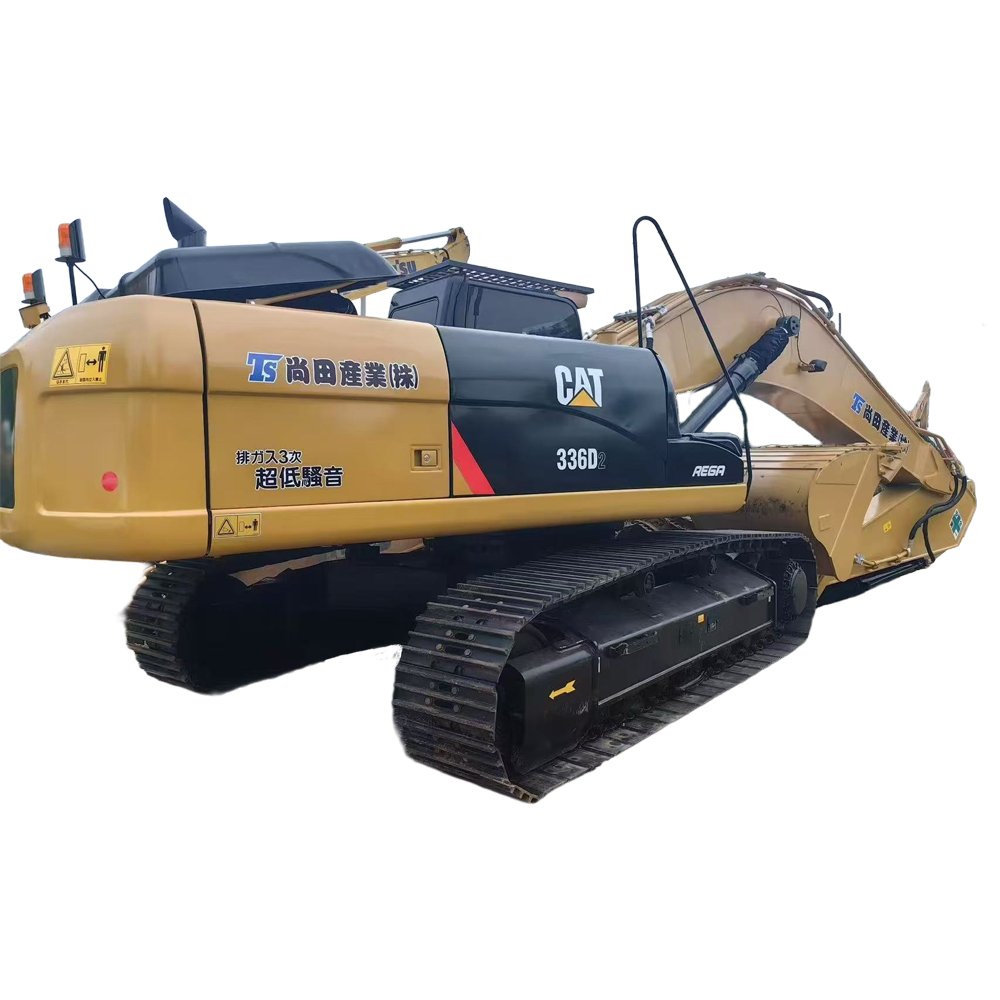

The advantages of the Caterpillar 336D2 excavator are as follows:
Low fuel consumption: In different working modes, the fuel consumption of the new generation engine is about 3% to 5% lower than that of the previous generation.
#text-2649336129 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0,0,0); } #text-2649336129 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-2649336129 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2649336129 { font-size: 1.1rem; line-height: 2.1; } }
#text-box-302026259 { width: 100%; } #text-box-302026259 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-302026259 { width: 49%; } } @media (min-width:850px) { #text-box-302026259 { width: 44%; } }
#image_1924783289 { width: 93%; } @media (min-width:550px) { #image_1924783289 { width: 43%; } } @media (min-width:850px) { #image_1924783289 { width: 31%; } }
#image_794757048 { width: 100%; } @media (min-width:550px) { #image_794757048 { width: 28%; } }
#banner-911435472 { padding-top: 570px; } @media (min-width:550px) { #banner-911435472 { padding-top: 500px; } }
#image_23474574 { width: 100%; } @media (min-width:550px) { #image_23474574 { width: 25%; } } @media (min-width:850px) { #image_23474574 { width: 27%; } }
Improved filtration system: ensures reliability even with poor fuel quality. Equipped with engine speed synchronization control function: improves fuel efficiency, reduces fuel consumption and noise levels by managing pump and engine speed.
#text-688265322 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-688265322 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-688265322 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-688265322 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }
#text-box-893471147 { width: 100%; } #text-box-893471147 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-893471147 { width: 49%; } } @media (min-width:850px) { #text-box-893471147 { width: 45%; } }
#banner-1031378947 { padding-top: 570px; } #banner-1031378947 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1031378947 { padding-top: 500px; } }
#image_937541135 { width: 100%; } @media (min-width:550px) { #image_937541135 { width: 30%; } } @media (min-width:850px) { #image_937541135 { width: 30%; } }
Dual pump system: provides sufficient pressure to ensure excellent digging performance and productivity. Unique design: the main pump, control valve and hydraulic oil tank are close to each other, and the connecting pipes are shorter, thus reducing friction loss and pressure drop.
#text-1751565767 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0, 0, 0); } #text-1751565767 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-1751565767 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-1751565767 { font-size: 1.1rem; line-height: 2.05; } }
#text-box-1808891864 { width: 100%; } #text-box-1808891864 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1808891864 { width: 51%; } } @media (min-width:850px) { #text-box-1808891864 { width: 44%; } }
#banner-1851796193 { padding-top: 600px; } #banner-1851796193 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-1851796193 { padding-top: 500px; } }
#image_201787579 { width: 100%; } @media (min-width:550px) { #image_201787579 { width: 33%; } } @media (min-width:850px) { #image_201787579 { width: 31%; } }
Operator Station: Equipped with an easy-to-read display, low-effort joystick controls and high suction air temperature adjustment, it provides a comfortable working environment for the operator.
#text-2234785852 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-2234785852 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-2234785852 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2234785852 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }
#text-box-557102476 { width: 100%; } #text-box-557102476 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-557102476 { width: 49%; } } @media (min-width:850px) { #text-box-557102476 { width: 45%; } }
#banner-1293169933 { padding-top: 530px; } #banner-1293169933 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1293169933 { padding-top: 500px; } }
A variety of optional working tools: Caterpillar 336D2 excavator has excellent versatility and can be equipped with a variety of working tools, including buckets, drums, grapples, multi-processors, ripper, breaker, crusher, hydraulic hammer and hydraulic shears. These attachments enable the excavator to adapt to a variety of different construction tasks, further enhancing its application range and flexibility.
#text-275320360 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0,0,0); } #text-275320360 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-275320360 { font-size: 0.8rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-275320360 { font-size: 0.9rem; line-height: 2.1; } }
#text-box-836636464 { width: 100%; } #text-box-836636464 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-836636464 { width: 49%; } } @media (min-width:850px) { #text-box-836636464 { width: 44%; } }
#image_699812215 { width: 100%; } @media (min-width:550px) { #image_699812215 { width: 30%; } }
#banner-213442381 { padding-top: 600px; } @media (min-width:550px) { #banner-213442381 { padding-top: 500px; } }
Technical Parameter
#text-1414028536 { font-size: 1.5rem; line-height: 2.45; text-align: center; color: rgb(0,0,0); } #text-1414028536 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-1414028536 { font-size: 1.7rem; line-height: 3; } }
| Category | Parameters |
|---|---|
| Product name | Caterpillar 336D2 |
| Engine model | ACERTTM CAT C9 |
| Operating Weight | 34489 kg/37086 kg |
| Boom Length | 6.5m |
| Arm Length | 2.8m |
| Bucket Capacity | 1.88 m3/1.9 m3 |
| Swing Speed | 8.3/8.98 rpm |
| Swing Torque | 109 kN·m/80142 lb ft |
| Travel Speed | 4.6/4.85 Km/h |
| Maximum Tractive Force | 300.5 KN |
| Bucket Digging Force | 210 kN |
| Arm Digging Force | 167 kN |
| Rated Power | 201/208/209 Kw |
| Displacement | 8.8L |
| Cylinder Bore x Stroke | Cylinder Bore x Stroke |
| Number of Cylinders | 6 |
| Overall Transport Length | 11.19/11.2 mm |
| Overall Transport Width | 3.19mm |
| Overall Transport Height | 3.49/3.7 mm |
| Track Shoe Width | 600mm |
| Minimum Ground Clearance | N/A |
| Max Reach Horizontal | 11.05/11.64 m |
| Fuel Tank Capacity | 620 L |
#text-box-2056899131 { width: 91%; } #text-box-2056899131 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-2056899131 { width: 50%; } }
#banner-1202931129 { padding-top: 900px; } #banner-1202931129 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1202931129 { padding-top: 1200px; } }
used cat336D2 excavator VIDEO
