Name: Komatsu PC240 EXCAVATOR
SKU: 2412
Availability: InStock

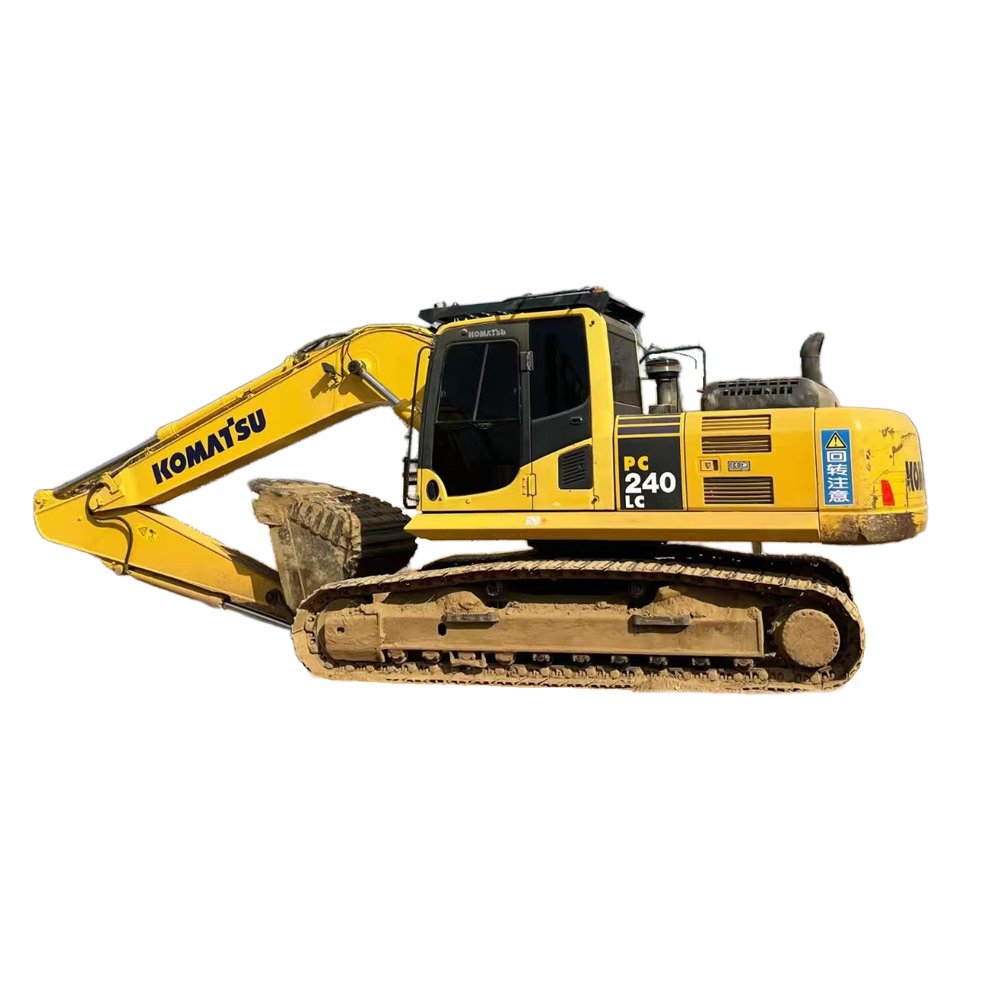

Komatsu PC240 is a 25-ton medium-sized excavator with a working weight of 25100kg. It is equipped with Komatsu SAA6D107E-1 high-power engine with a rated power of 123kW. Combined with the advanced pressure-compensated CLSS hydraulic system, it has strong power and can easily cope with complex working conditions.
#text-2471635341 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0,0,0); } #text-2471635341 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-2471635341 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2471635341 { font-size: 1.1rem; line-height: 2.1; } }

#text-box-249996923 { width: 100%; } #text-box-249996923 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-249996923 { width: 49%; } } @media (min-width:850px) { #text-box-249996923 { width: 44%; } }

#image_1956756473 { width: 93%; } @media (min-width:550px) { #image_1956756473 { width: 43%; } } @media (min-width:850px) { #image_1956756473 { width: 34%; } }

#banner-1695849077 { padding-top: 680px; } @media (min-width:550px) { #banner-1695849077 { padding-top: 500px; } }

#image_1756517795 { width: 89%; } @media (min-width:550px) { #image_1756517795 { width: 32%; } } @media (min-width:850px) { #image_1756517795 { width: 19%; } }

The bucket capacity of this model is 1.2-1.45m³, the bucket digging force is 172kN, the digging force of the bucket arm is 129kN, the rotation speed is 11.7rpm, and the walking speed has three gears of 5.5/4.2/3.1km/h, which is efficient and flexible.
#text-3852117942 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-3852117942 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-3852117942 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-3852117942 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-677239003 { width: 100%; } #text-box-677239003 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-677239003 { width: 49%; } } @media (min-width:850px) { #text-box-677239003 { width: 45%; } }

#banner-1234561837 { padding-top: 750px; } #banner-1234561837 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1234561837 { padding-top: 500px; } }

#image_510856969 { width: 89%; } @media (min-width:550px) { #image_510856969 { width: 40%; } } @media (min-width:850px) { #image_510856969 { width: 31%; } }

This excavator has many highlights in design. Its cab is sturdy and has good sound absorption effect. It is equipped with double-layer control air conditioning and high-damping shock absorber seat, which is comfortable to operate. The parallel cooler installation method is adopted, the oil and filter element replacement cycle is extended, the oil filter element and fuel drain valve are easy to access, and maintenance is convenient. In terms of size, it has a total length of 9885mm, a total width of 3180mm, a total height (to the top of the cab) of 3055mm, a maximum digging radius of 10180mm, a maximum digging depth of 6920mm, a wide operating range, and can adapt to a variety of construction scenarios.
#text-553943518 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0, 0, 0); } #text-553943518 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-553943518 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-553943518 { font-size: 1.1rem; line-height: 2.05; } }

#text-box-1371779648 { width: 100%; } #text-box-1371779648 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1371779648 { width: 51%; } } @media (min-width:850px) { #text-box-1371779648 { width: 44%; } }

#banner-1520834865 { padding-top: 1100px; } #banner-1520834865 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-1520834865 { padding-top: 500px; } }

#gap-1064197808 { padding-top: 10%; }

Category	Parameters
Product name	Komatsu240
Engine model	Komatsu SAA6D107E-1
Working weight	25100kg
Bucket capacity	1.2m³
Rated speed	2000rpm
Gross power (ISO 14396)	129kW (175PS)
Maximum traction	202kN (20570kgf)
Gradeability	70% (35°)
Travel speed	5.5/4.2/3.1km/h
Full length	9885mm/9960mm
Full width	3180mm
Full height (to the top of the cab)	3055mm
Full height (to the top of the boom)	3185mm/3295mm
Track length on the ground	3845mm
Track length	4640mm
Track gauge	2580mm
Track width	3180mm
Track shoe width	600mm
Minimum ground clearance	440mm
Tail swing radius	2940mm

#text-box-2143855366 { width: 91%; } #text-box-2143855366 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-2143855366 { width: 50%; } }

#banner-270897447 { padding-top: 600px; } #banner-270897447 .overlay { background-color: rgba(19, 19, 19, 0.791); }

Tonghao company Machine VIDEO
