Description

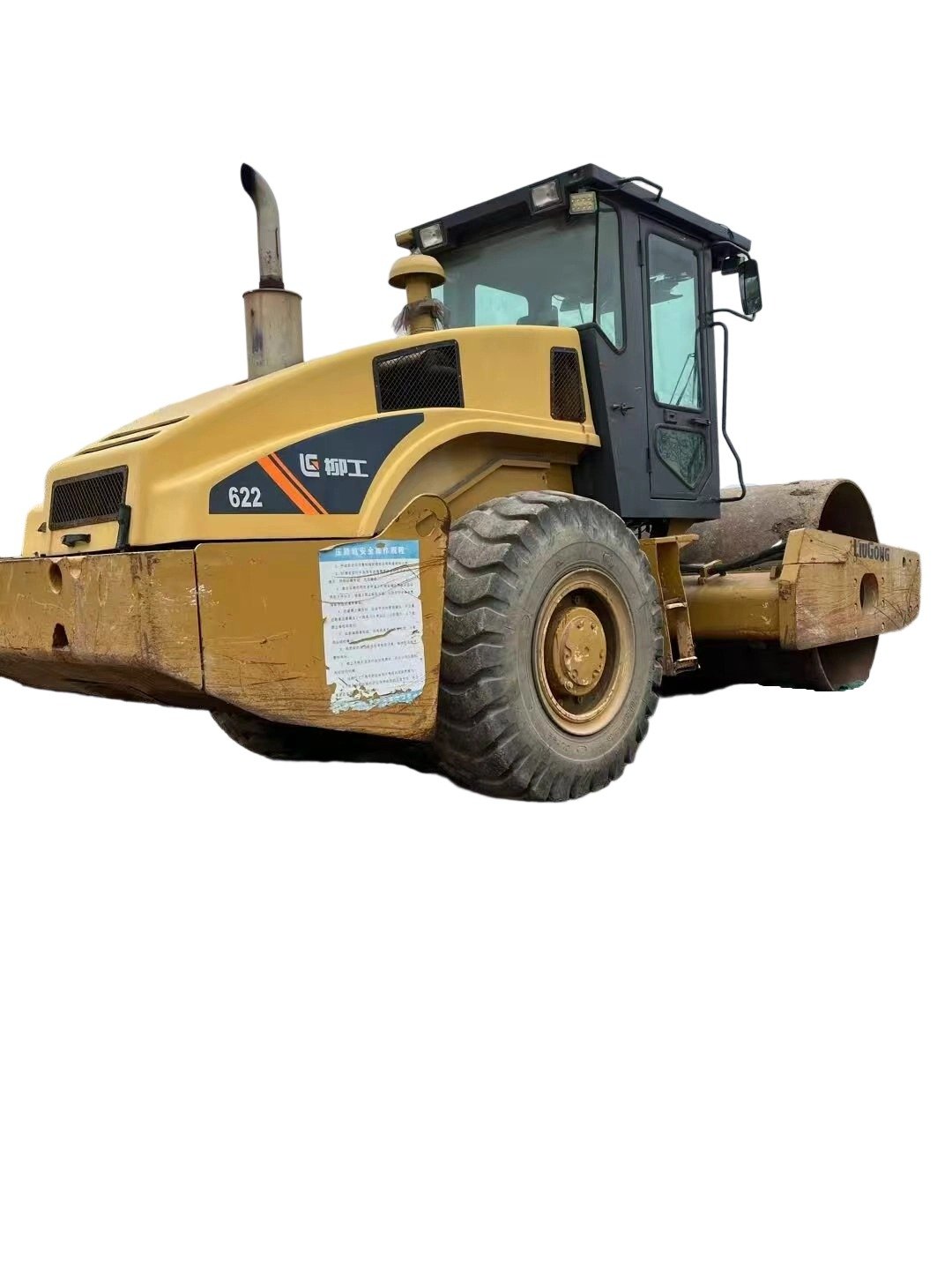

Liugong CLG622D roller is a mechanical vibration single steel wheel roller with a working mass of 22,000 kg. Its overall dimensions are 6,330 mm long, 2,400 mm wide, 3,040 mm high, and a wheel base of 3,100 mm. The roller is equipped with a Shanghai Diesel D6114ZG2B engine with a rated power of 128 kW and a rated speed of 2,150 rpm. This sturdy design ensures its efficient and reliable performance in various compaction operations.
#text-2734989670 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-2734989670 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-2734989670 { font-size: 0.9rem; text-align: left; } } @media (min-width:850px) { #text-2734989670 { font-size: 1.1rem; line-height: 2.1; } }
#text-box-235049429 { width: 100%; } #text-box-235049429 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-235049429 { width: 49%; } } @media (min-width:850px) { #text-box-235049429 { width: 44%; } }
#image_2026554167 { width: 52%; } @media (min-width:550px) { #image_2026554167 { width: 43%; } } @media (min-width:850px) { #image_2026554167 { width: 19%; } }
#banner-302172546 { padding-top: 660px; } @media (min-width:550px) { #banner-302172546 { padding-top: 500px; } }
#image_539851983 { width: 80%; } @media (min-width:550px) { #image_539851983 { width: 32%; } } @media (min-width:850px) { #image_539851983 { width: 19%; } }
The vibration frequency of Liugong CLG622D roller is 30 Hz and 32 Hz, the nominal amplitude is 2.1 mm/1.0 mm or 2.1 mm/1.1 mm, and the exciting force is 420 kN/240 kN. The driving speed is 13 km/h at high speed and about 2.8 km/h at low speed. Its climbing ability is 30% and the turning radius is 6.5 meters. The drum is made of high-strength material with a rim thickness of 40 mm to ensure durability and efficient compaction. The cab has excellent vibration isolation performance, provide operators with comfortable and smooth driving experience. Good visibility and user-friendly operation design enhance the over all working experience. The application of innovative technologies such as the power shift transmission improves efficiency and ease of operation. These features make the CLG622D a reliable choice for various compaction operations.
#text-886270712 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(255, 255, 255); } #text-886270712 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-886270712 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-886270712 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }
#text-box-1053724048 { width: 100%; } #text-box-1053724048 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1053724048 { width: 49%; } } @media (min-width:850px) { #text-box-1053724048 { width: 45%; } }
#banner-964478680 { padding-top: 900px; } #banner-964478680 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-964478680 { padding-top: 500px; } }
#image_1029883274 { width: 89%; } @media (min-width:550px) { #image_1029883274 { width: 40%; } } @media (min-width:850px) { #image_1029883274 { width: 19%; } }
In terms of application, Liugong CLG622D is very suitable for compaction operations on roads, airports, ports, dams and industrial construction sites. Its versatility and rugged design make it a reliable choice for a variety of projects. The key components adopt a modular design, and the inspection ports of each component are reasonably arranged, making maintenance convenient and efficient. This design not only reduces maintenance costs, but also improves the uptime of the equipment, ensuring that it remains operational and productive for a longer period of time.
#text-3106102659 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0, 0, 0); } #text-3106102659 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-3106102659 { font-size: 1rem; text-align: left; } } @media (min-width:850px) { #text-3106102659 { font-size: 1.1rem; line-height: 2.05; } }
#text-box-28744764 { width: 100%; } #text-box-28744764 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-28744764 { width: 51%; } } @media (min-width:850px) { #text-box-28744764 { width: 44%; } }
#banner-699465111 { padding-top: 850px; } #banner-699465111 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-699465111 { padding-top: 500px; } }
Technical Parameter
