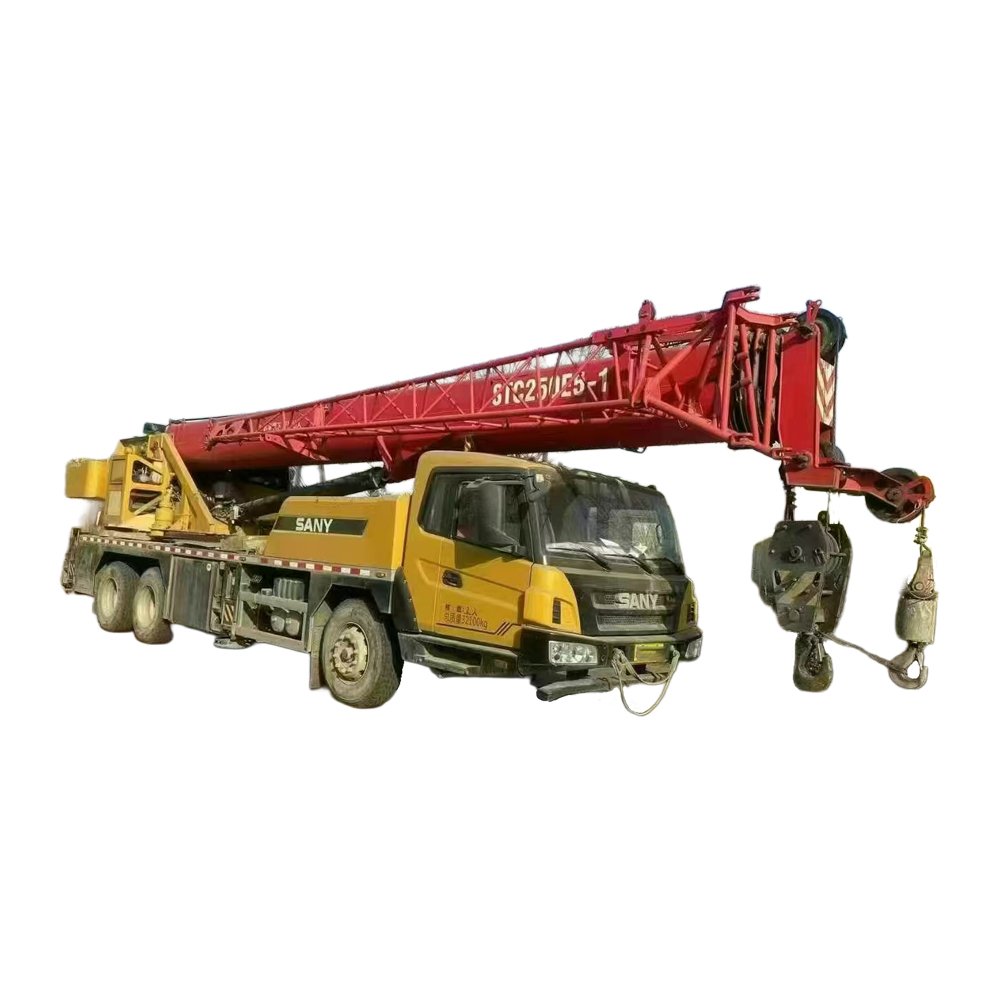

Name: SANY 25 Tons Crane
SKU: 2342
Availability: InStock

Sany 25t crane demonstrates outstanding performance. It has an excellent lifting capacity, with a maximum rated lifting capacity of 25 tons. The full extension length of the main boom ranges from approximately 41 meters to 45 meters, the maximum lifting height is between 49 meters and 51 meters, and the lifting moment is between 1063 kN·m and 1250.5 kN·m.
#text-3345331598 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-3345331598 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-3345331598 { font-size: 0.9rem; text-align: left; } } @media (min-width:850px) { #text-3345331598 { font-size: 1.2rem; line-height: 2.3; } }

#text-box-483775346 { width: 100%; } #text-box-483775346 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-483775346 { width: 49%; } } @media (min-width:850px) { #text-box-483775346 { width: 44%; } }

#image_1397123849 { width: 93%; } @media (min-width:550px) { #image_1397123849 { width: 43%; } } @media (min-width:850px) { #image_1397123849 { width: 20%; } }

#banner-426254486 { padding-top: 850px; } @media (min-width:550px) { #banner-426254486 { padding-top: 500px; } }

#image_97066932 { width: 89%; } @media (min-width:550px) { #image_97066932 { width: 32%; } } @media (min-width:850px) { #image_97066932 { width: 19%; } }

The chassis performance is excellent and it is equipped with engines from well-known brands such as Dongfeng Cummins, Yuchai, and Weichai. The maximum speed can reach 80 to 90 kilometers per hour and the maximum climbing grade is between 30% and 49%.

#text-1249807968 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(255, 255, 255); } #text-1249807968 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-1249807968 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-1249807968 { font-size: 1.3rem; line-height: 2.3; text-align: left; } }

#text-box-1599718522 { width: 100%; } #text-box-1599718522 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1599718522 { width: 49%; } } @media (min-width:850px) { #text-box-1599718522 { width: 45%; } }

#banner-726117519 { padding-top: 750px; } #banner-726117519 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-726117519 { padding-top: 500px; } }

#image_801529987 { width: 89%; } @media (min-width:550px) { #image_801529987 { width: 40%; } } @media (min-width:850px) { #image_801529987 { width: 30%; } }

This vehicle uses a heavy-duty high-strength frame, a double-stage reduction bridge and rubber suspension, and the span of the H-shaped legs is very large. The hydraulic system and control system are very advanced, using a dual-pump intelligent distribution system and a CAN bus control system, and have fault diagnosis functions and load limiters to ensure safety and reliability, and are both convenient and comfortable to operate.

#text-1344943718 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0, 0, 0); } #text-1344943718 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-1344943718 { font-size: 1rem; text-align: left; } } @media (min-width:850px) { #text-1344943718 { font-size: 1.2rem; line-height: 2.3; } }

#text-box-188620394 { width: 100%; } #text-box-188620394 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-188620394 { width: 47%; } } @media (min-width:850px) { #text-box-188620394 { width: 44%; } }

#banner-1440336903 { padding-top: 650px; } #banner-1440336903 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-1440336903 { padding-top: 500px; } }

#image_570132135 { width: 89%; } @media (min-width:550px) { #image_570132135 { width: 33%; } } @media (min-width:850px) { #image_570132135 { width: 29%; } }

The design of the cab takes full consideration of ergonomics to ensure safety and comfort, and is equipped with air conditioning and other facilities. The operation adopts electro-hydraulic compound control, the handle is light, the control is precise, and the rotation and lifting are very stable. The appearance is classic red paint, and the size of the whole machine is designed just right. Some models also use hybrid technology, which is both energy-saving and environmentally friendly.

#text-2644128994 { font-size: 0.9rem; line-height: 2.3; text-align: center; color: rgb(255, 255, 255); } #text-2644128994 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-2644128994 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2644128994 { font-size: 1.3rem; line-height: 2.3; text-align: left; } }

#text-box-798864315 { width: 100%; } #text-box-798864315 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-798864315 { width: 49%; } } @media (min-width:850px) { #text-box-798864315 { width: 45%; } }

#banner-53564947 { padding-top: 700px; } #banner-53564947 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-53564947 { padding-top: 500px; } }

The application scope of Sany 25-ton crane is particularly wide, whether it is earthwork engineering, highway construction, municipal public works, garden landscape, plant construction, bridge construction, equipment installation and other occasions, it can be seen. This crane provides strong support for the efficient completion of various engineering projects.

#text-4176358064 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-4176358064 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-4176358064 { font-size: 1rem; line-height: 2.7; text-align: left; } } @media (min-width:850px) { #text-4176358064 { font-size: 1.3rem; line-height: 2.3; } }

#text-box-376435103 { width: 100%; } #text-box-376435103 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-376435103 { width: 49%; } } @media (min-width:850px) { #text-box-376435103 { width: 44%; } }

#image_1631991532 { width: 89%; } @media (min-width:550px) { #image_1631991532 { width: 34%; } } @media (min-width:850px) { #image_1631991532 { width: 29%; } }

#banner-1071067064 { padding-top: 650px; } @media (min-width:550px) { #banner-1071067064 { padding-top: 500px; } }

#gap-1048948986 { padding-top: 10%; }

Parameter Type	Specific Parameter
Maximum Rated Lifting Capacity	25 tons
Maximum Lifting Moment	1063 kN
Maximum Main Boom Length	41 meters
Maximum Auxiliary Boom Length	8 meters
Maximum Lifting Height	49 meters
Total Machine Weight	34,200 kg
Maximum Counterweight	6.4 tons
Total Machine Length	13,250 mm
Total Machine Width	2,550 mm
Total Machine Height	3,620 mm
Outrigger Span (Horizontal *Vertical)	6.4 * 5.4 m
Engine Model	Weichai WP9H310E50 (National Emission Standard V)
Maximum Engine Power	228/1900 kW/rpm
Maximum Engine Output Torque	1500/(1000 – 1400) N路m/rpm
Maximum Driving Speed	90 km/h
Minimum Turning Radius	11 m
Maximum Gradient Ability	0.49
Approach Angle	10
Departure Angle	12
Minimum Ground Clearance	250 mm
Maximum Single Rope Speed of Main Hoist	145 m/min
Full Extension/Retraction Time of Boom	90/100 s
Full Lifting/Lowering Time of Boom	35/45 s
Maximum Slewing Speed	2.5 r/min

#text-box-1553923771 { width: 91%; } #text-box-1553923771 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1553923771 { width: 50%; } }

#banner-1628517808 { padding-top: 600px; } #banner-1628517808 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1628517808 { padding-top: 1400px; } }

used sany 25 tONS CRANE video
