Name: XCMG 25 Tons Crane
SKU: 2344
Availability: InStock

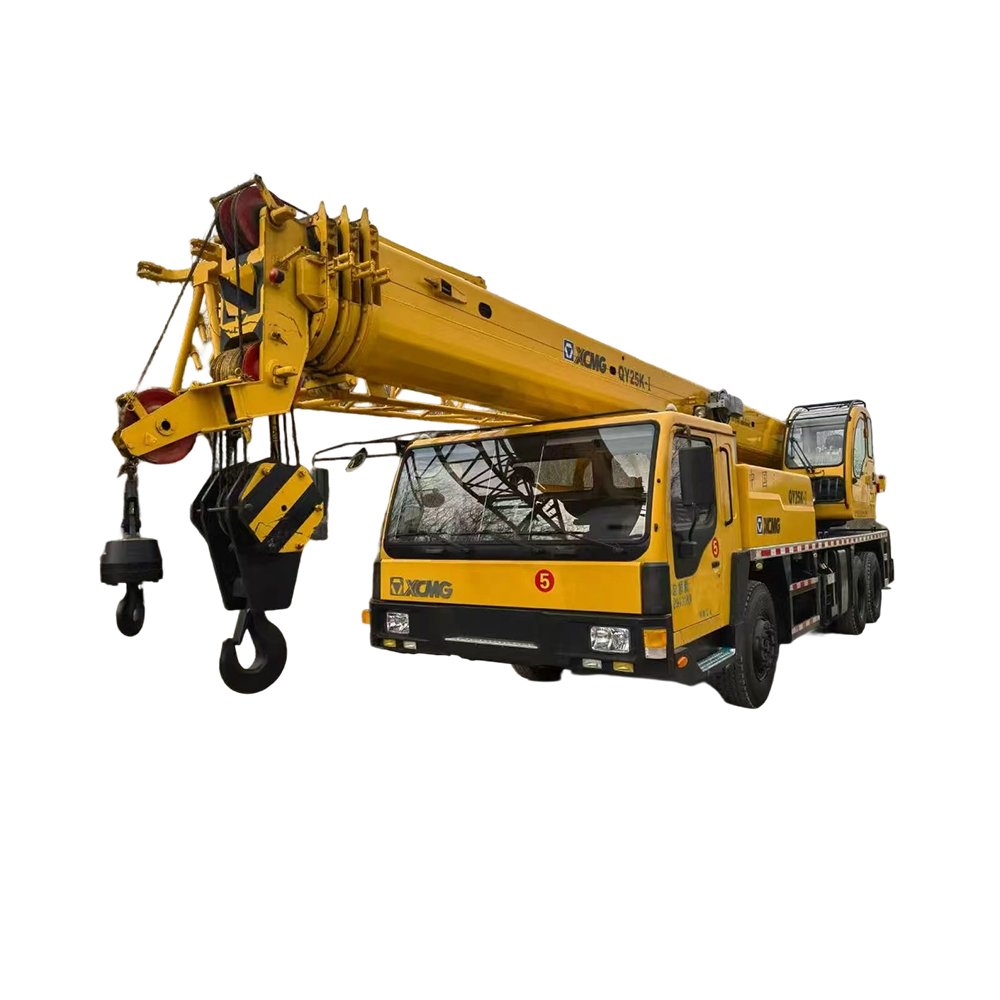

XCMG 25-ton crane is an efficient and reliable lifting equipment with a rated lifting capacity of 25 tons. It is equipped with a 5-section main arm (up to 43 meters) and a jib (up to 8.3 meters). The maximum lifting height is 61.5 meters, which meets the needs of high-altitude operations and long-distance lifting.
#text-547129138 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-547129138 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-547129138 { font-size: 0.9rem; text-align: left; } } @media (min-width:850px) { #text-547129138 { font-size: 1.1rem; line-height: 2.1; } }

#text-box-1328165320 { width: 100%; } #text-box-1328165320 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1328165320 { width: 49%; } } @media (min-width:850px) { #text-box-1328165320 { width: 44%; } }

#image_1486564442 { width: 93%; } @media (min-width:550px) { #image_1486564442 { width: 43%; } } @media (min-width:850px) { #image_1486564442 { width: 26%; } }

#banner-522533944 { padding-top: 660px; } @media (min-width:550px) { #banner-522533944 { padding-top: 400px; } } @media (min-width:850px) { #banner-522533944 { padding-top: 500px; } }

#image_1142914429 { width: 89%; } @media (min-width:550px) { #image_1142914429 { width: 38%; } } @media (min-width:850px) { #image_1142914429 { width: 25%; } }

It is equipped with a Cummins or Yuchai engine (190-270 horsepower), matched with a Fast gearbox, and a maximum speed of 90km/h, combining power performance and transfer efficiency. The outrigger span is optimized to 6.5 meters, with a 6.7-ton counterweight, combined with a torque limiter and a hydraulic lock to ensure operational stability.
#text-727377960 { font-size: 0.9rem; line-height: 2.3; text-align: center; color: rgb(255, 255, 255); } #text-727377960 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-727377960 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-727377960 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-477127015 { width: 100%; } #text-box-477127015 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-477127015 { width: 49%; } } @media (min-width:850px) { #text-box-477127015 { width: 45%; } }

#banner-800270763 { padding-top: 700px; } #banner-800270763 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-800270763 { padding-top: 380px; } } @media (min-width:850px) { #banner-800270763 { padding-top: 500px; } }

#image_1503996217 { width: 89%; } @media (min-width:550px) { #image_1503996217 { width: 40%; } } @media (min-width:850px) { #image_1503996217 { width: 26%; } }

Some models use an extended-range hybrid system with a pure electric endurance of 22 hours and a 70% reduction in fuel consumption, taking into account both environmental protection and economy.
#text-1079964118 { font-size: 1rem; line-height: 2.3; text-align: center; color: rgb(0, 0, 0); } #text-1079964118 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-1079964118 { font-size: 1rem; text-align: left; } } @media (min-width:850px) { #text-1079964118 { font-size: 1.1rem; line-height: 2.05; } }

#text-box-508859075 { width: 100%; } #text-box-508859075 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-508859075 { width: 51%; } } @media (min-width:850px) { #text-box-508859075 { width: 44%; } }

#banner-834304171 { padding-top: 600px; } #banner-834304171 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-834304171 { padding-top: 350px; } } @media (min-width:850px) { #banner-834304171 { padding-top: 500px; } }

#image_4216642 { width: 89%; } @media (min-width:550px) { #image_4216642 { width: 38%; } } @media (min-width:850px) { #image_4216642 { width: 34%; } }

This model adopts a high-strength U-arm design, combined with dual-pump confluence technology, to achieve precise control of compound movements and increase operating efficiency by 30%. It is equipped with intelligent control system and full-life structural safety design as standard, and has passed 178 extreme tests, with a service life that is 1.6 times longer than the industry benchmark.
#text-2415465882 { font-size: 0.9rem; line-height: 2.3; text-align: center; color: rgb(255, 255, 255); } #text-2415465882 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-2415465882 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2415465882 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-1091479450 { width: 100%; } #text-box-1091479450 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1091479450 { width: 49%; } } @media (min-width:850px) { #text-box-1091479450 { width: 45%; } }

#banner-551249203 { padding-top: 550px; } #banner-551249203 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-551249203 { padding-top: 300px; } } @media (min-width:850px) { #banner-551249203 { padding-top: 500px; } }

The cab is equipped with a high-definition display and remote control function, and the outriggers and booms support radio operation. The machine weighs about 29 tons and has a compact body (13.37 meters long × 2.54 meters wide × 3.55 meters high). It is suitable for scenes such as bridge construction, factory hoisting, and equipment relocation. It can flexibly cope with narrow sites and height-restricted areas, making it an ideal choice for medium and large projects.
#text-1005367380 { font-size: 0.9rem; line-height: 2.3; text-align: center; color: rgb(0,0,0); } #text-1005367380 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-1005367380 { font-size: 1rem; line-height: 2.05; text-align: left; } } @media (min-width:850px) { #text-1005367380 { line-height: 2.2; } }

#text-box-1905037472 { width: 100%; } #text-box-1905037472 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1905037472 { width: 49%; } } @media (min-width:850px) { #text-box-1905037472 { width: 44%; } }

#image_839976944 { width: 89%; } @media (min-width:550px) { #image_839976944 { width: 38%; } } @media (min-width:850px) { #image_839976944 { width: 18%; } }

#banner-447347327 { padding-top: 550px; } @media (min-width:550px) { #banner-447347327 { padding-top: 380px; } } @media (min-width:850px) { #banner-447347327 { padding-top: 500px; } }

#gap-1516439276 { padding-top: 10%; }

Rated lifting capacity	25 tons
Machine weight	about 32 tons
Dimensions (length × width × height)	about 12500×2500×3450mm
Engine model	Weichai WP10.270
Rated power	199kW/2200rpm
Maximum torque	1020N・m/1400 – 1600rpm
Maximum driving speed	≥75km/h
Minimum turning radius	≤12m
Maximum climbing grade	≥40%
Main boom length	10.8 – 34m
Jun boom length	7.5m
Maximum lifting torque	1000kN・m
Maximum lifting height (main boom + Jib)	41.5m
Maximum lifting speed of main winch single rope	110m/min
Maximum lifting speed of auxiliary winch single rope	105m/min
Boom lifting time	≤60s
Boom extension time	≤120s
Slewing speed	0 – 2.5r/min
Wheelbase	4325+1350mm
Track	front 2055mm, rear 1840mm
Tire specification	11.00 – 20
System working pressure	32MPa
Fuel tank capacity	about 280L

#text-box-286800206 { width: 91%; } #text-box-286800206 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-286800206 { width: 50%; } }

#banner-419402432 { padding-top: 600px; } #banner-419402432 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-419402432 { padding-top: 1300px; } }

USED XCMG 25 TONs CRANE video
